System Overview
Total System Size:
7.2 kWp (kilowatt-peak)
This means the system can produce up to 7.2 kW of power under ideal conditions (peak sunlight).
Typical System Capabilities
Daily generation: ~20–35 kWh/day (UK average, depending on season & orientation)
Battery backup: ~7.2 kWh of storage, covering evening/night usage.
Inverter output limit: 6 kW max (so excess solar is curtailed or stored in batteries).
Ideal for: Medium-to-large homes with high daytime and evening consumption
EST ANNUAL ENERGY (kWh) - 6632 kWh
-

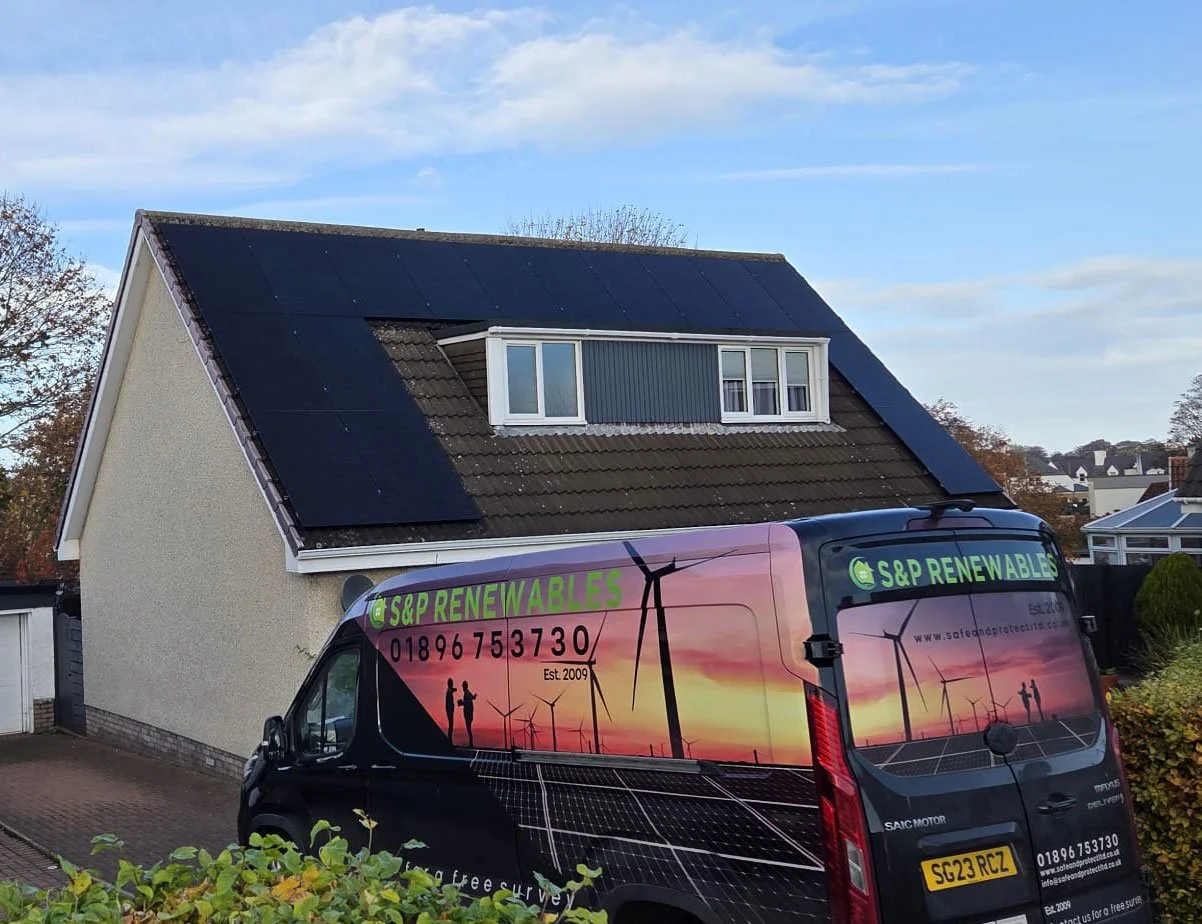

16 × 450 W DMEGC panels
16 panels × 450 W = 7,200 W (7.2 kWp) total capacity.
DMEGC is a reputable Tier-1 manufacturer known for solid performance and reliability.
Panels likely have a 25-year performance warranty and around 20–22% efficiency.
-

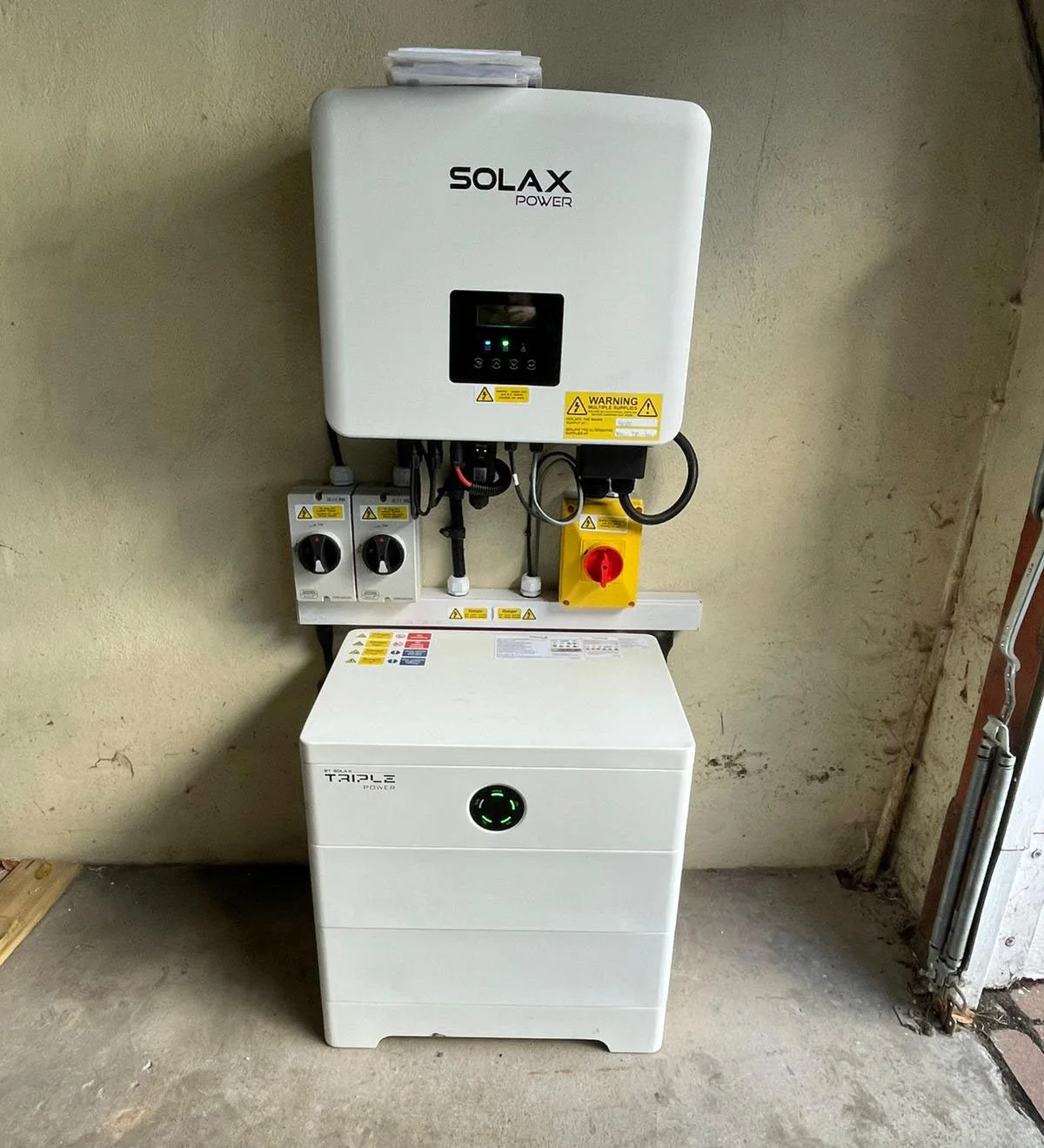

Solax X1 6 kW Hybrid Inverter
A hybrid inverter manages both solar generation and battery storage.
6 kW output means it can deliver up to 6 kW of AC power to your home or the grid.
Supports battery charging/discharging and can operate during grid outages (if configured with backup mode).
-
2 × 3.6 kWh batteries (total 7.2 kWh usable storage)
This provides roughly 7.2 kWh of usable energy, enough to power an average household’s evening use.
Typically, this would cover:
Lighting and appliances for several hours after sunset.
Possibly overnight supply depending on consumption.
-

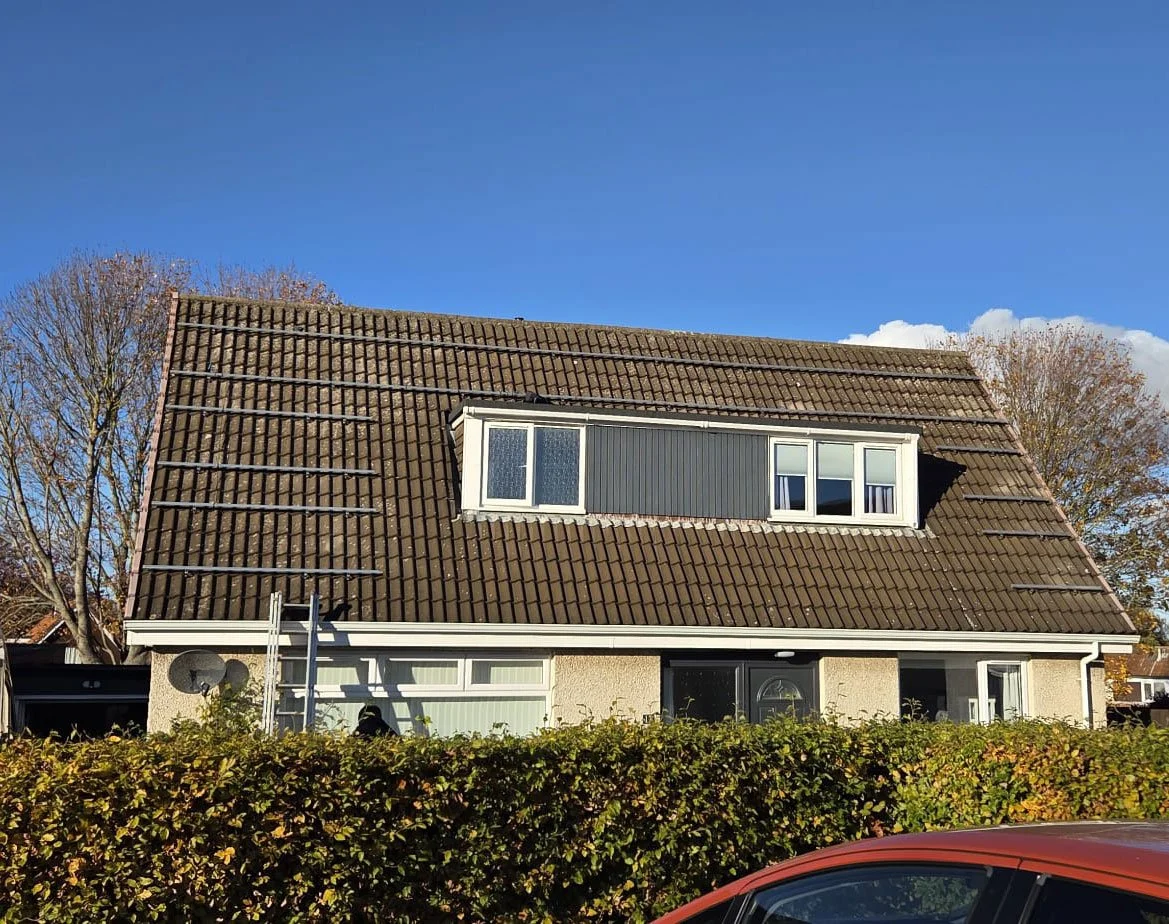

K2 Mounting Kit
High-quality German mounting system for securing panels to the roof.
Designed for durability and weather resistance.
Suitable for most roof types (tile, slate, metal, etc.).
-
Mesh or clips fitted around the panels to prevent birds (like pigeons) from nesting under them.
Helps maintain performance and avoids debris buildup or wiring damage.
