System Overview

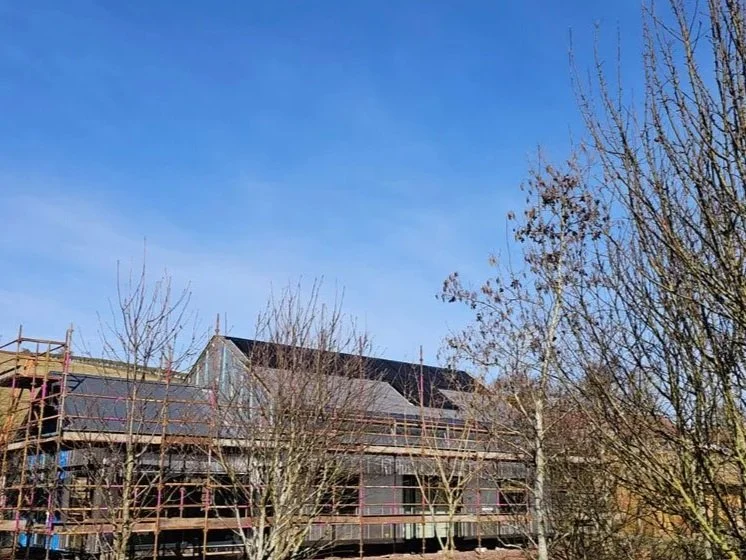

A roof-integrated photovoltaic (PV) system designed to provide renewable electricity generation for a new-build residential property. The system features high-efficiency Phono Solar panels, SolarEdge power optimization, and battery storage to maximize self-consumption and energy independence.
EST ANNUAL ENERGY (kWh) = 5001 kWh
-
Panels: 12 × Phono Solar 410 W modules
Total Peak Capacity: 4.92 kWp (12 × 410 W)
Panel Type: Monocrystalline (high efficiency)

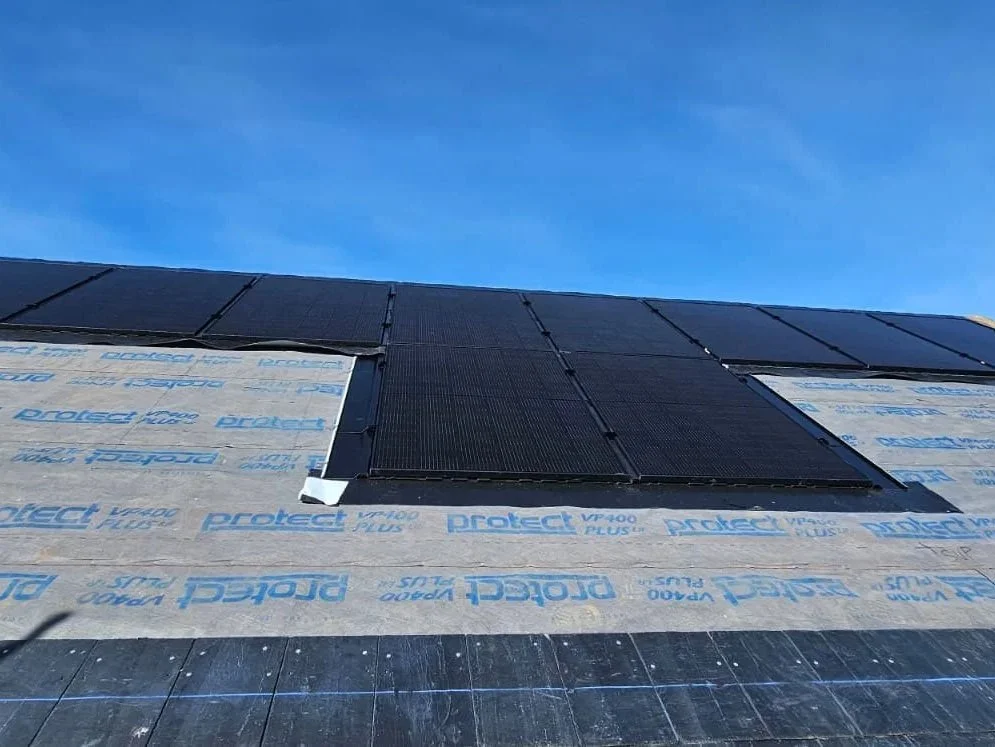

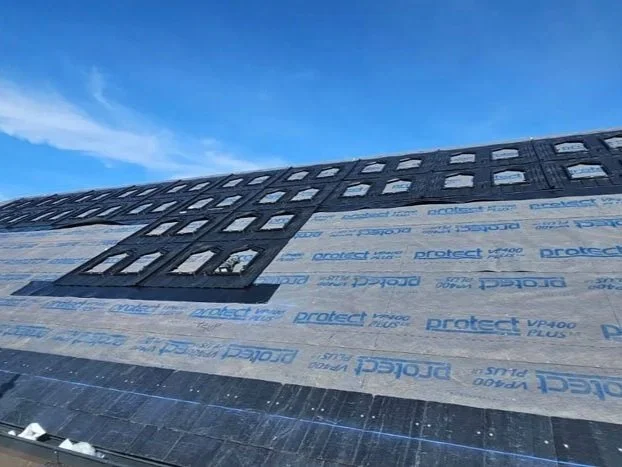

Mounting System: GSE Integrated in-roof system
Provides a sleek, building-integrated appearance
Ensures weatherproofing and compliance with roofing standards
Suitable for new-build installations where aesthetics is a priority
-

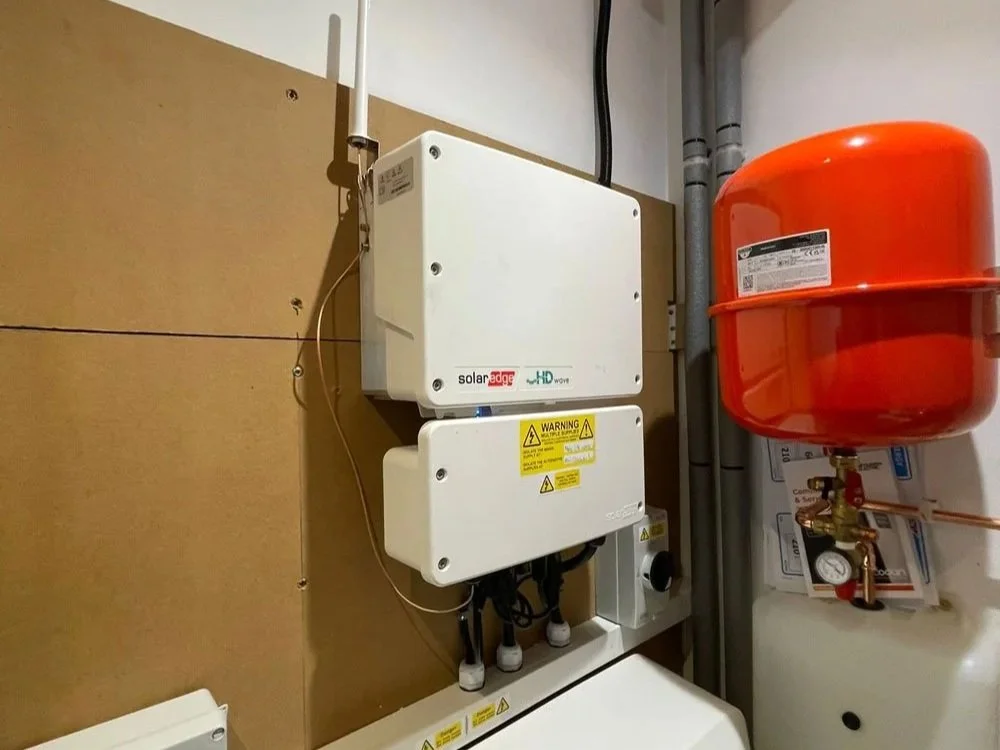

Inverter: SolarEdge SE3680H HD-Wave
Rated AC Output: 3.68 kW
Efficiency: Up to 99%
Single-phase connection
Monitoring: Full module-level monitoring via SolarEdge monitoring platform
Optimizers: 12 × SolarEdge Power Optimizers
Each panel equipped for individual maximum power point tracking (MPPT)
Enhances system performance in partial shading conditions
Improves overall yield and system diagnostics
-

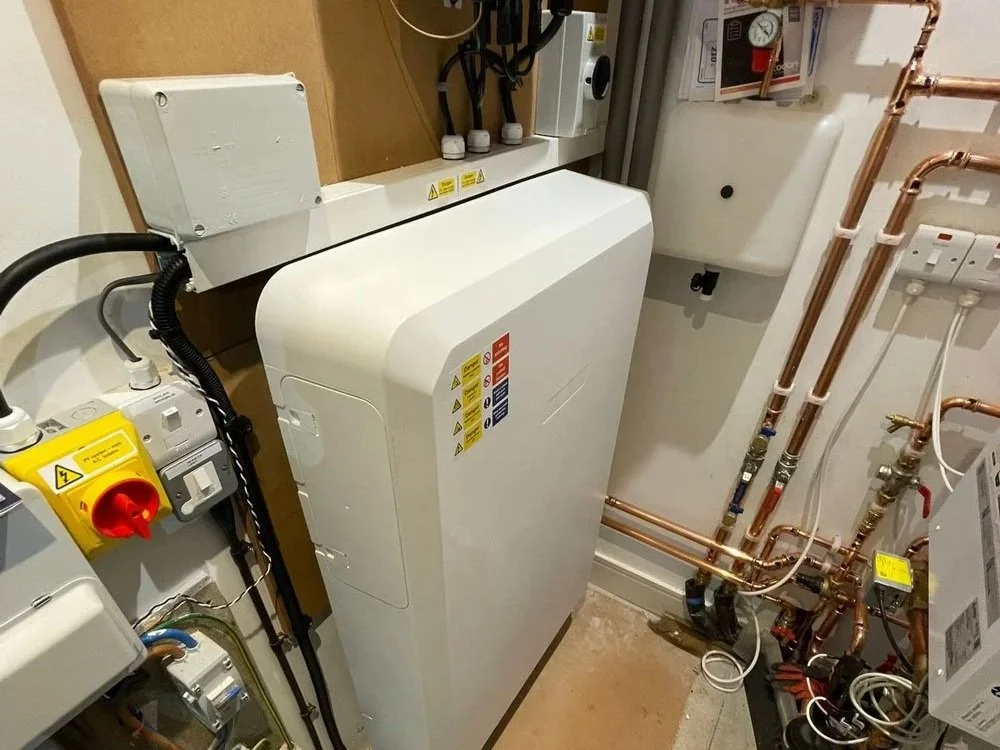

Battery Capacity: 10 kWh usable storage
Integration: Compatible with SolarEdge Energy Bank / or equivalent DC-coupled battery
Functionality:
Stores excess solar generation for later use
Provides backup capability (if configured)
Enhances self-consumption and reduces grid dependence
-
System Size: 5.67 kWp
Inverter Output Limit: 3.68 kW (G98 compliant for single-phase grid connection)
Battery Type: Lithium-ion / LiFePO₄ (depending on model)
Monitoring: Online portal and mobile app for real-time and historical performance tracking
Key Benefits
Roof-integrated aesthetic suitable for new-build design
Optimised energy generation through SolarEdge technology
On-site energy storage for increased self-sufficiency
Real-time monitoring and fault diagnostics
Reduced grid electricity consumption and carbon footprint
